gridpack::network::AdjacencyList Class Reference

#include <adjacency_list.hpp>

Inheritance diagram for gridpack::network::AdjacencyList:

[legend]

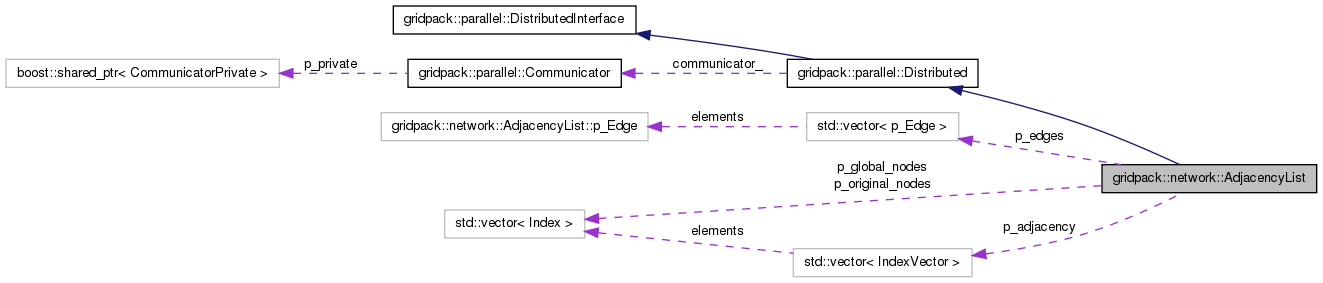

Collaboration diagram for gridpack::network::AdjacencyList:

[legend]

List of all members.

Classes
struct	p_Edge
Public Types
typedef unsigned int	Index
	In case we need to change the type.
typedef std::vector< Index >	IndexVector
	A thing to hold Indexes.
Public Member Functions
	AdjacencyList (const parallel::Communicator &comm)
	Default constructor.
	AdjacencyList (const parallel::Communicator &comm, const int &local_nodes, const int &local_edges)
	Construct with known local sizes (guesses to size containers, maybe).
	~AdjacencyList (void)
	Destructor.
void	add_node (const Index &global_index, const Index &original_index)
	Add the global index and original index of a local node.
void	add_edge (const Index &edge_index, Index node_index_1, Index node_index_2)
void	get_global_edge_ids (int idx, Index *node_index_1, Index *node_index_2) const
	Get the global indices of the buses at either end of a branch.
size_t	nodes (void) const
	Get the number of local nodes.
Index	node_index (const int &local_index) const
	Get the global node index given a local index.
size_t	edges (void) const
	Get the number of local edges.
Index	edge_index (const int &local_index) const
	Get the global edge index given a local index.
void	edge (const int &local_index, Index &node1, Index &node2) const
	Get an edges connected global node indexes.
void	ready (void)
	Indicate that the graph is complete.
void	node_neighbors (const int &local_index, IndexVector &global_neighbor_indexes) const
	Get the neighbors of the specified (local) node.
size_t	node_neighbors (const int &local_index) const
	Get the number of neighbors of the specified (local) node.
Static Public Attributes
static const Index	bogus
	The index that means unconnected.

---

Detailed Description

This class provides a way to assemble a graph adjacency list when graph node and edge information is arbitrarily distributed. For example, one process may "own" a certain node, but the way that node is connected to others may be on another process.

It just works with integral indexes. It is assumed that the global indexes start with 0, are unique, and that the largest index is N-1 if there are N nodes/edges. There's probably some special term for that.

---

Member Typedef Documentation

typedef unsigned int gridpack::network::AdjacencyList::Index

In case we need to change the type.

typedef std::vector<Index> gridpack::network::AdjacencyList::IndexVector

A thing to hold Indexes.

---

Constructor & Destructor Documentation

gridpack::network::AdjacencyList::AdjacencyList

(

const parallel::Communicator &

comm

)

Default constructor.

gridpack::network::AdjacencyList::AdjacencyList	(	const parallel::Communicator &	comm,
		const int &	local_nodes,
		const int &	local_edges
	)

Construct with known local sizes (guesses to size containers, maybe).

gridpack::network::AdjacencyList::~AdjacencyList

(

void

)

Destructor.

---

Member Function Documentation

void gridpack::network::AdjacencyList::add_edge	(	const Index &	edge_index,
		Index	node_index_1,
		Index	node_index_2
	)

Add the global index of a local edge and what it connects using the original indices for the buses at either end of the node

void gridpack::network::AdjacencyList::add_node	(	const Index &	global_index,
		const Index &	original_index
	)

Add the global index and original index of a local node.

void gridpack::network::AdjacencyList::edge	(	const int &	local_index,
		Index &	node1,
		Index &	node2
	)			const

Get an edges connected global node indexes.

Index gridpack::network::AdjacencyList::edge_index

(

const int &

local_index

)

const

Get the global edge index given a local index.

size_t gridpack::network::AdjacencyList::edges

(

void

)

const

Get the number of local edges.

void gridpack::network::AdjacencyList::get_global_edge_ids	(	int	idx,
		Index *	node_index_1,
		Index *	node_index_2
	)			const

Get the global indices of the buses at either end of a branch.

Index gridpack::network::AdjacencyList::node_index

(

const int &

local_index

)

const

Get the global node index given a local index.

size_t gridpack::network::AdjacencyList::node_neighbors

(

const int &

local_index

)

const

Get the number of neighbors of the specified (local) node.

void gridpack::network::AdjacencyList::node_neighbors	(	const int &	local_index,
		IndexVector &	global_neighbor_indexes
	)			const

Get the neighbors of the specified (local) node.

size_t gridpack::network::AdjacencyList::nodes

(

void

)

const

Get the number of local nodes.

void gridpack::network::AdjacencyList::ready

(

void

)

Indicate that the graph is complete.

---

Member Data Documentation

const Index gridpack::network::AdjacencyList::bogus [static]

The index that means unconnected.

---

The documentation for this class was generated from the following file:

• adjacency_list.hpp
